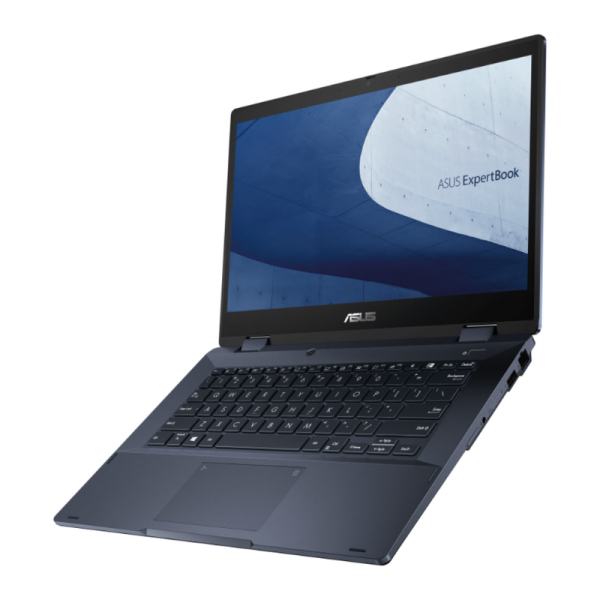

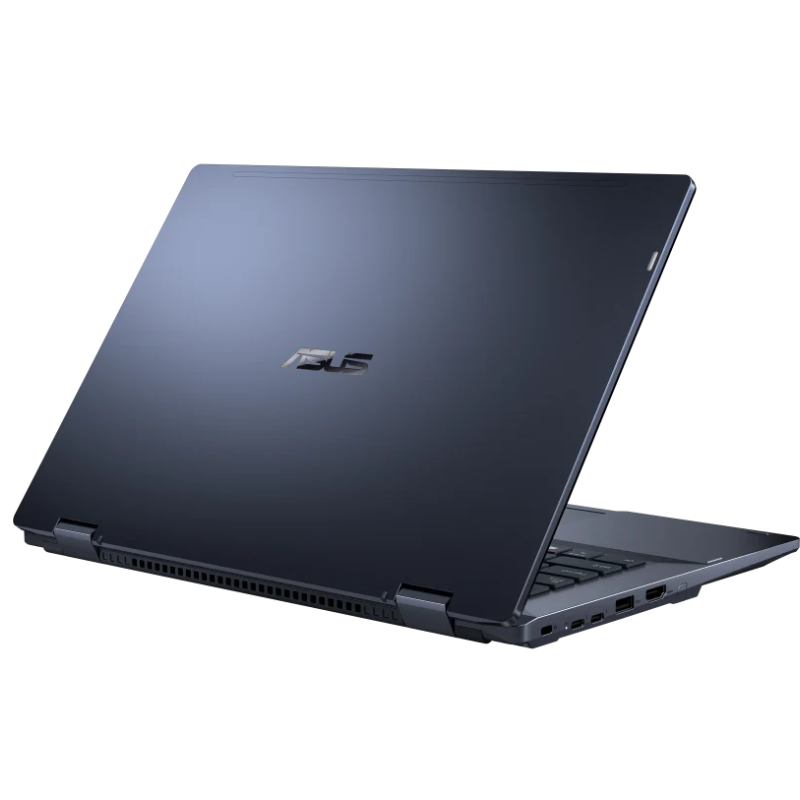

ASUS ExpertBook B3 Flip (B3402F)

 ASUS ExpertBook B3 Flip (B3402F) – Core i5-(gen 11-65G7)

Processor & Chipset

CPU: Intel Core i5-1165G7 (11th Gen Tiger Lake, 4 cores / 8 threads, 10nm Super Fin, up to 4.7 GHz)

Integrated GPU: Intel Iris Xe Graphics (supports multiple external displays via HDMI & USB-C)

Memory (RAM)
8GB DDR4 3200MHz, non-ECC

Storage
Type: M.2 2280 PCIe NVMe SSD

Factory Options: 512GB

User Upgradeable: Yes, single M.2 slot

Interface: PCIe Gen 3 x4

Display
Size: 14.0″ FHD (1920×1080) IPS

Touchscreen: Yes, with AES stylus support

Brightness: ~250 nits

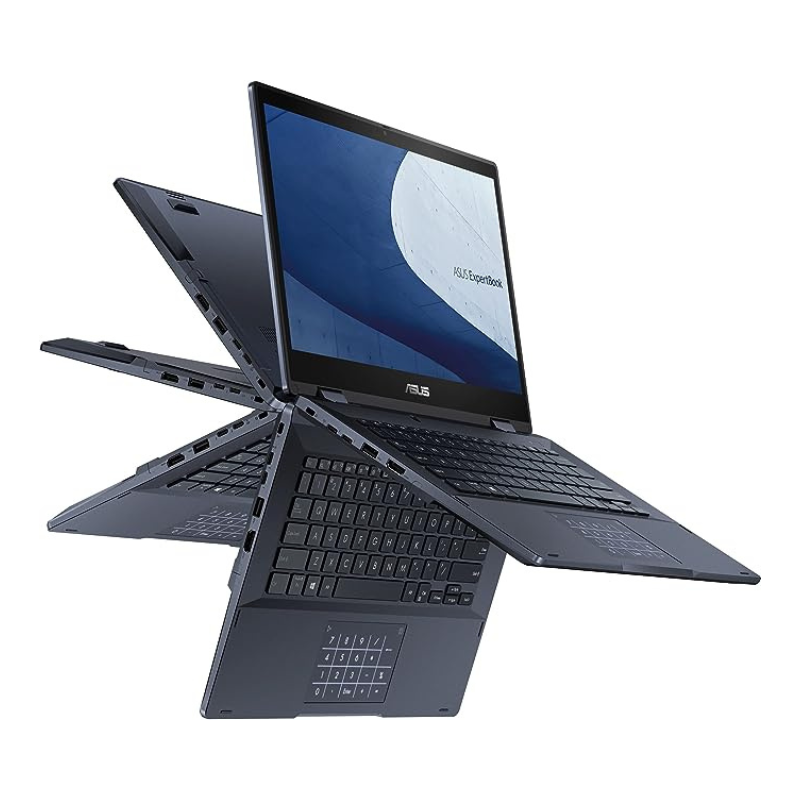

Hinge: 360° Flip hinge (convertible mode)

Protective Glass: Anti-glare, standard (not Corning Gorilla Glass)

Ports
1× USB-C 3.2 Gen 2 (DisplayPort & Power Delivery)

2× USB-A 3.2 Gen 1

1× HDMI 2.0

1× RJ-45 LAN port

1× 3.5mm audio combo jack

1× microSD card reader

Optional SIM slot (for LTE configurations)

Battery & Power
Battery: 3-cell 50Wh Li-ion

Charger: 65W USB-C AC adapter

Battery Life: ~7–9 hours (real-world mixed use)

️ Durability & Security
Certifications: MIL-STD-810H (vibration, drop, humidity, altitude)

Security: TPM 2.0, Kensington lock, webcam privacy shutter, optional fingerprint sensor

Keyboard: Spill-resistant, backlit optional

Serviceability
Disassembly:

Torx screws + internal plastic clips (careful around hinge area)

Accessible: SSD, SO-DIMM, battery, wireless card

Non-accessible: Soldered RAM, CPU, GPU

Thermal Design:

Single fan, one heat pipe

Moderate throttling under heavy sustained loads (~90°C CPU)

Ideal Use Cases
IT fleets for education & enterprise

Convertible flexibility for note-taking or presentation

Durable field use in light commercial/industrial settings
